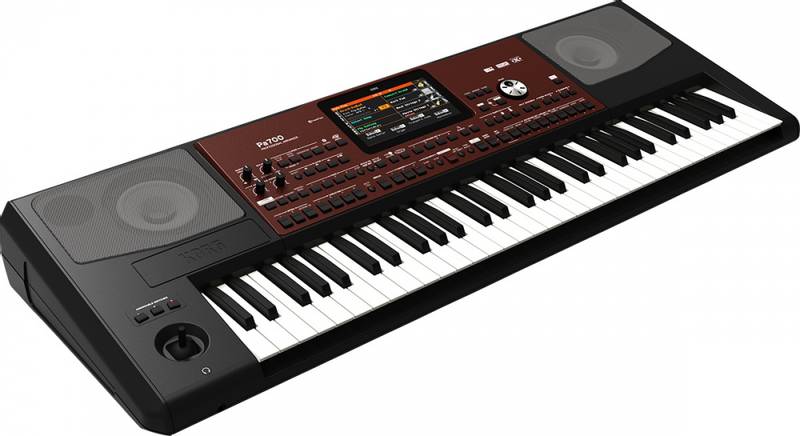

Professional Arranger with EDS-X sound engine for improved realism and vivid sound.
The Pa700 is a concept that combines a slim profile with a professional visual motif. But while its size might appear compact, its sound is huge, thanks to the power of the onboard high-quality custom designed amplification system. The 2x25 Watt amplifiers drive the 2 loudspeakers in a bass-reflex enclosure to generate a rich, full-bodied listening experience. The main panel has been optimized to ensure that all controls are ergonomically positioned and intuitively located to make every performance feel smooth and natural. Big, bright, and bold, the new capacitive TouchView display hosts a redesigned graphical interface that is easier than ever to read, even under the most demanding lighting environments. Searching for that song, Style, or file that you were just using? The multi-function Search feature can find what you are looking for—quickly! Styles, Keyboard Sets and SongBook can be read directly from a USB drive—without the need to load data in the internal memory.
Specifications:
Keyboard: 61 keys (C2 – C7) with velocity
System: Upgradable operating system, Multitasking, Load while play
Sound Generator: EDS-X (Enhanced Definition Synthesis – eXpanded), Filters with resonance, 3-band EQ on each Sound
Sounds / Drum Kits: Factory: Pa700: More than 1,700 Factory Sounds including a multilayer Stereo Piano with damper and body resonance, GM/XG sound sets and 106 Drum Kits; Pa700 ORIENTAL: See the User Manual (TBD). User: 512 Sounds, 256 Drum Kits. Digital Drawbars: 9 footages, percussion, key on/off, leakage, rotary speaker effect. DNC (Defined Nuance Control) Technology, Natural Ambience Drums. Full Sounds/Drum Kits editing
Sampling : 128 MB compressed (equivalent to 256 MB linear data);Loads KORG, WAV, AIFF and SoundFont™ formats: Saves KORG, WAV and AIFF formats. Full Edit, Time Slice
Styles: Factory: Pa700: More than 370 Factory Styles, freely reconfigurable sets: Pa700 ORIENTAL: See the User Manual (TBD). User: 1,152 locations, including User and Direct banks. Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style. Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table). Style/Pad Record with Step Record, Track and Event Edit. Style Creator Bot (MIDI Song to Style Converter). Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode
Chord Sequencer: Chord Sequence recorder and player in Style Play mode. Chord Sequences can be saved to Style and SongBook Entries. Edit functions: Delete, Copy from Style/SongBook, Import/Export from/to SMF
Keyboard Set Library: Memorize Keyboard Sound settings. Factory: Pa700: More than 290 Factory Keyboard Sets, freely reconfigurable. Pa700 ORIENTAL: See the User Manual (TBD). User: 864 locations, including User and Direct banks, ‘My Setting’ special Keyboard Set
KAOSS FX : Automatic MIDI FX generator. More than 65 Factory Presets
Song Play: Supported formats: MID, KAR, MP3+Lyrics, MP3+G. Select, Start/Stop, Home, Rewind and Fast Forward controls. Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor. Markers with Add, Delete, Edit and Loop functions. Jukebox function
MP3 Player / Recorder: MP3 Player and Recorder. Transpose (+6/-5 semitones), Tempo change (±30%). Vocal Remover. Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar and Effects
Sequencer: Quick Record (Backing Sequence), Multitrack and Step Record functions. Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
SongBook: Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes. User definable Set Lists, with Entries selectable from the control panel. Filtering and sorting options
Speaker System: Amplification: 2 x 25W, Speakers: 2 x Dual Cone Speakers in Bass Reflex Box
MIDI IN, OUT standard MIDI connectors. USB to MIDI using the USB ports. HOST: memory and controllers, DEVICE: personal computers. Eight user definable MIDI Setups
USB: Type A (Host), Type B (Device). 2.0 Hgh-Speed connections (480 Mbit/s). Low-Speed (1.5 Mbit/s) and Full-Speed (12 Mbit/s) devices can only be connected through a High-Speed USB hub.
Storage: Internal memory: 960 MB. USB external drives (drive not included). microSD card (not included); rear panel slot with plastic cover
Display : 7” Wide capacitive color TouchView™ TFT display
Video Out: HDMI connector
Clock: Internal System Clock
Power Consumption: 100-240 Volts, 50/60 Hz, 25 Watt normal / < 0.3 Watt in standby
Dimensions (W x D x H): 1030 x 378.3 x 132 mm/40.55" x 14.89" x 5.2" (without music stand; height with music rest: 355.8 mm / 14”)
