Zoom Livetrak L-12 Mikser og Opptaker

Art.nr: L-12

7.995,-

Antall:

Zoom

Normalt 3-5 dagers leveringstid, så lenge varen er på lager hos leverandør.

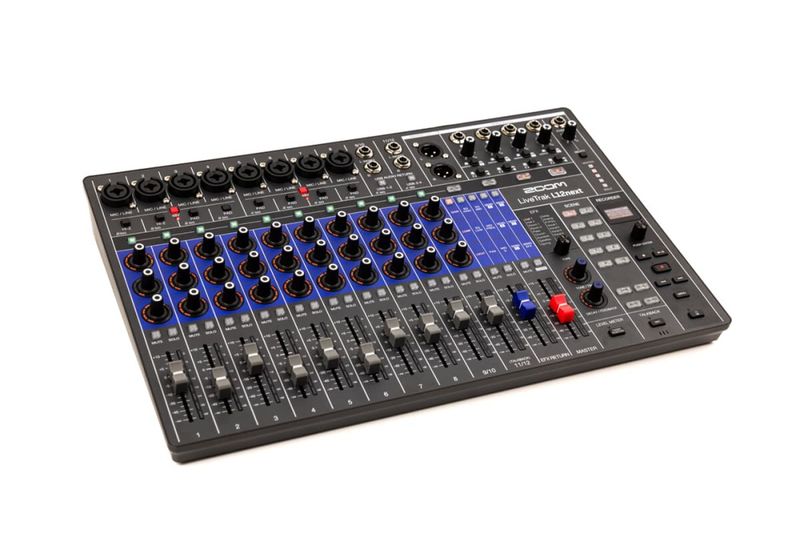

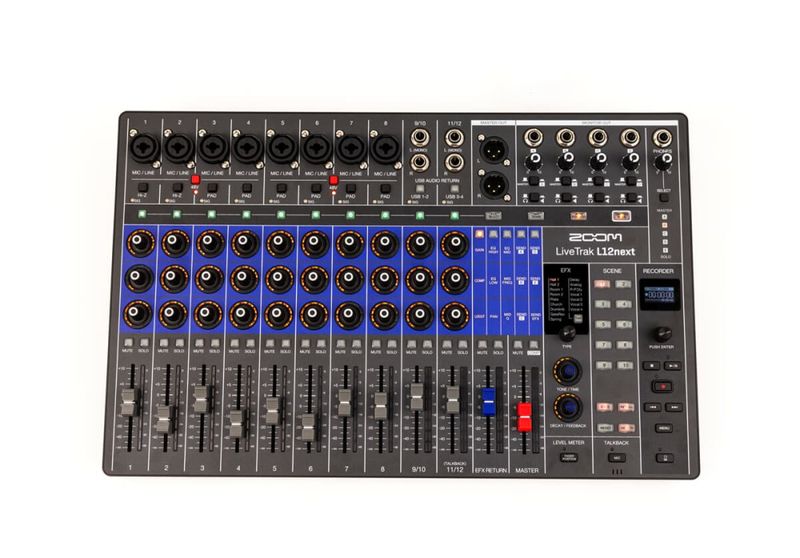

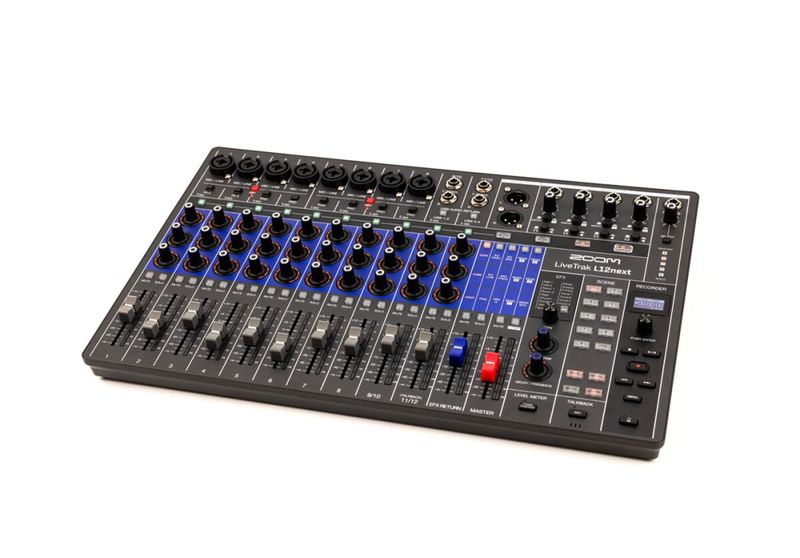

LiveTrak L-12 Mix, Record, Monitor, Playback, and Remix

With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.

Effortless Live Mixing

LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere

LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.

Five Custom Monitoring Mixes

Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
14-track simultaneous recording, 12-track playback
14-in/4-out USB audio interface connectivity
5 powered headphone outputs, each with a customizable and saveable mix
Add backing/click tracks from your computer to your live mix and recording
RCA and TS line inputs
48V phantom power (channels 1-4 and 5-8)
Hi-Z connectivity (channels 1 and 2)
26 dB pad (channels 3-8)
Built-in compression control (Channels 1-8)
Digital level meters -48 dB to -0 dB
Master mute button
Low-cut control
Stereo panning
Master and Monitor Outputs A-E
Scene saving function, up to 9 scenes saved at a time
16 built-in delay and reverb effects with adjustable parameters
Built-in slate mic
Class-compliant mode (for iOS compatibility)
SD card input
Built-in metronome
Automatic recording starting/stopping capability
Project protection
Import/export projects with USB 2.0 host port
Latency adjustment for A-to-D conversion
Compatible functions for ZOOM FS01 footswitch

The Channel Strip ( 1 )

All 12 inputs include a channel fader and mute button. The eight mono inputs also include single-knob compression and gain control. Record or playback individual channels with the "Rec/Play" button. Use the "Select" button to apply Channel Strip settings (EQ and panning controls, and "EFX Return" settings) to the selected channel.

Easy EQ Control ( 2 )

The L-12 provides a smooth 3-band mid-parametric EQ and a low cut function for each input channel.

Plenty of Inputs ( 3 )

The L-12’s combo inputs support XLR or 1/4-inch connections. Channels 1 and 2 offer Hi-Z inputs for connecting an electric guitar or bass. Channels 9/10 and 11/12 have TS line connectivity for keyboards and other audio devices, as well as RCA inputs.

Navigation and Display ( 4 )

LiveTrak’s bright, backlit LCD screen and encoder knob let you access an intuitive menu system to create new projects, recall previous projects, and customize your recorder settings.

16 Onboard Effects ( 5 )

The L-12 offers 16 built-in effects with fully adjustable parameters. Choose from delay and reverb effects, then apply them to any channel.

Custom Scene Settings ( 6 )

Save up to nine different scenes and recall your custom settings automatically. Each scene saves fader position, EQ settings, pan, mute, and more. The “Fader Mode” buttons allow you to design custom mixes for both the Master and monitor outs.

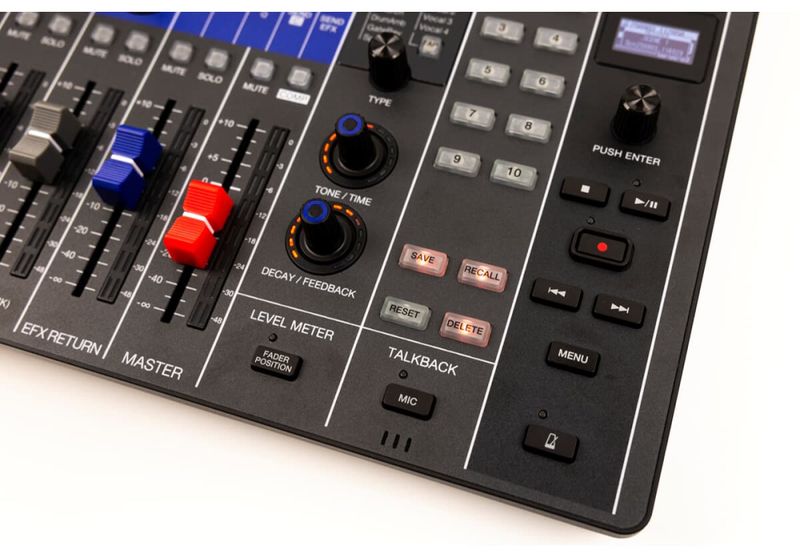

Slate Mic and Metronome ( 7 )

Use the built-in slate mic to record comments or talk-back, and program the metronome to your desired tempo.

USB Connectivity for Your DAW

LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.* Apple Lightning to USB Camera Adapter required.

What’s Under the Hood?

Our Best Mic Preamps Yet

At -128 dBu EIN with +60 dB maximum input gain, LiveTrak is equipped with the quietest and most advanced preamps we’ve ever made. Just wait until you hear how incredible it sounds.

High-Definition Sample Rates

The L-12 supports sample rates up to 96 kHz when recording to an SD card, allowing you to record in high definition. In Audio Interface mode, the L-12 can record up to 48 kHz to a computer and an SD card simultaneously.

Convenient Auto Recording

Record automatically by adjusting the L-12’s customizable audio input commands. Set it to start when the master fader detects a certain dB level, or use a guitar chord or snare hit to start the track. You can capture data up to two seconds before recording starts, in case a performance begins ahead of time.

Versatile Operation Modes

The L-12 is equipped with several operation modes. Audio Interface mode lets you route inputs and outputs to any DAW.

With USB Host mode, transfer projects and audio files to a connected USB flash drive. In Card Reader mode, the L-12 acts as an SD card reader, allowing you to transfer audio files to and from your computer.

Accessories

Here's what comes included with the L-12:

AC adapter (AD-19)
USB 2.0 cable
Quick Guide

Optional Accessory:

Rack mount adapter (RKL-12)
Foot swtich (FS01)

Number of Input and output Channels
Inputs:	Mono (MIC/LINE): 8 Stereo (LINE): 2
Outputs:	MASTER OUT: 1 MONITOR OUT: 5
Inputs
Mono (MIC/LINE):	Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) Input gain PAD OFF: +16 - +60 dB PAD ON: -10 – +34 dB Hi-Z ON: +6 - +50 dB Input impedance XLR: 3 kO TRS: 10kO/1 MO (when Hi-Z ON) Maximum input level PAD OFF: 0 dBu (at 0 dBFS) PAD ON: +26 dBu (at dBFS) Phantom Power +48 V
Stereo (LINE):	Type: TS phone/RCA pin (unbalanced) jacks Maximum input level +10 dBu

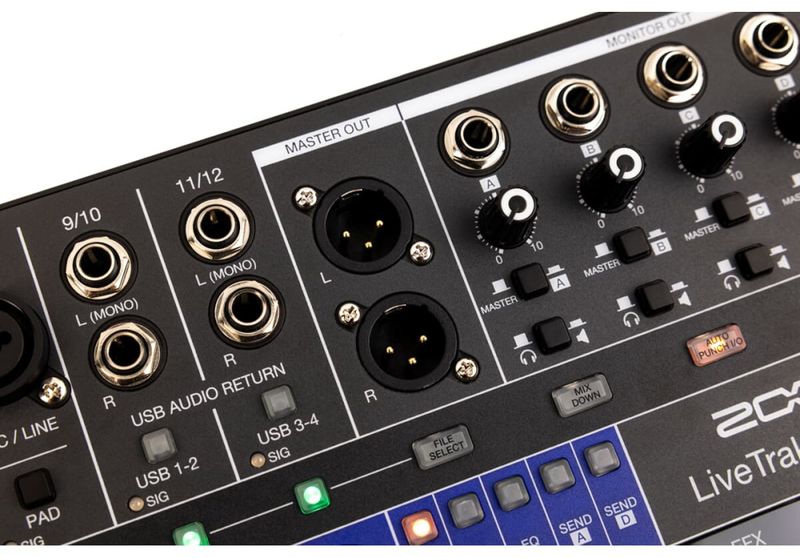

Outputs
MASTER OUT:	Type: XLR jacks (balanced) Maximum output level: +14.5 dBu Output impedance: 100 O
MONITOR OUT A (TRS):	Type: TRS phone jacks (balanced) Maximum output Level: +14.5 dBu Output impedance: 100 O
MONITOR OUT A-E (PHONES):	Type: Standard Stereo phone jacks Maximum output level: 42 mW + 42 mW at 60 O Output impedance: 100 O
Buses
MASTER:	1
MONITOR:	5
SEND EFX:	1
Channel Strip
COMP:
LOW CUT:	75 Hz, 12 dB/OCT
EQ:	HIGH: 10 kHz, ± 15 dB, shelving MID: 100 Hz-8 kHz, ±15 dB, peaking LOW: 100 Hz, ± 15 dB, shelving
Level meters
Level segments:	12
Send effects
Effects:	16 types: Hall 1 & 2 (reverb) Room 1 & 2(reverb) Plate (reverb) Church (reverb) DrumAmb (reverb) GateRev (reverb) Spring (reverb) Delay (delay) Analog (delay) P-P Dly (delay) Vocal 1-4 (delay + reverb)
Recorder
Maximum simultaneous recording tracks:	14 at 44.1/48 kHz (12 channel + stereo mix) 12 at 96 kHz
Maximum simultaneous playback tracks:	12
Recording format:	WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
Recording media:	16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards
Audio interface
44.1/48 kHz:	Recording: 14 channels Playback: 4 channels
Bit depth:	24-bit
Interface:	USB 2.0
Card reader
Class:	Mass storage USB 2.0 High Speed
USB HOST
Class:	USB 2.0 High Speed
Sampling rate
Sampling rate:	44.1/48/96 kHz
Frequency characteristics
44.1 kHz:	-1.0 dB: 20 Hz - 20 kHz
96 kHz:	-3.0 dB: 20 Hz - 40 kHz
Equivalent input noise
Actual measurements:	-128 dB EIN (IHF-A) with +60 dB/150 O input

Display:	LCD with backlight (128x64 resolution)
Power supply:	ZOOM AD-19 AC adapter (DC12 V/2 A)
Power consumption:	17W maximum
External dimensions:	445 mm (W) x 282 mm (D) x 70.5 mm (H) 17.5” (W) x 11.1” (D) x 2.78” (H)
Weight (main unit only):	2.53 kg / 5.58 lbs
