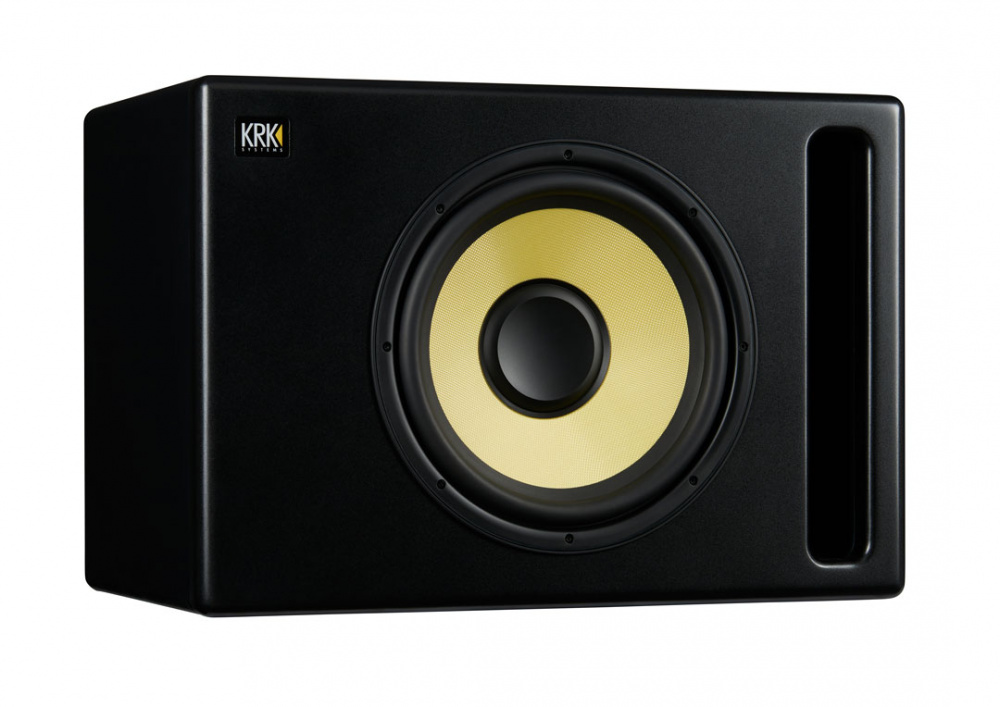

220watt active subwoofer featuring 12" woven kevlar woofer
The S12.4 powered studio subwoofer builds upon KRK’s legacy for sonic accuracy and stellar performance. The custom-made, Kevlar® woofer delivers ultra-tight, defined bass, while the Class-D power amplifier dramatically increases transient response, control, and punch. The four-position selectable crossover lets you adjust the subwoofer setting easily to your existing monitors.
Pairing the S12.4 with KRK or another studio monitor delivers an optimized listening and mixing experience with extended low end, while the exclusive bypass-control feature provides full range audio to the monitors without switching off the subwoofer. The powerful S12.4 subwoofer doesn’t just deliver precise, ultra-low bass and a rich feature set: it’s the next dimension in subwoofer performance.
|
Configuration |
Front Loaded, Vented Subwoofer |
|
System Type |
Active Subwoofer |
|
Low-Frequency |
12" Woven Kevlar® Woofer |
|
Frequency Response |
32Hz - 139Hz |
|
Max Peak SPL |
119.9 dB |
|
Amplifier |
Class D |
|
Power Output (Continous) |
220 Watts @ 1% THD+N @ 44Hz |
|
Signal to Noise Ratio |
92 dB |
|
Amplifier Distortion (THD + N) |
≤ 0.3% @-3dB Of Max Power Output 29Hz-97Hz |
|
Input Impedance |
9.4 KΩ Balanced, 9.2 KΩ Unbalanced |
|
Ground Lift |
On/Off |
|
Low Pass Frequency |
26Hz-130Hz |
|
HPF Bypass |
With Footswitch Only |
|
Footswitch |
Optional |
|
Phase |
0 or 180 Degrees |
|
System Volume |
-30 dB to +6 dB |
|
Indicators |
Power/Standby, Sub On/Mute, HPF Bypass |
|
Input Connectors |
XLR L/R, 1/4" TRS L/R, RCA L/R, 1/4" Footswitch |
|
LFE Input |
Balanced TRS |
|
Output Connectors |
XLR L/R, 1/4" TRS L/R, RCA L/R |
|
AC Power Input |
Selectable 110V-120V / 220V0240V |
|
Enclosure |
18mm Reinforced MDF |
|
Finish |
Black Vinyl Wrap |
|
Grill |
Steel Perf |
|
Dimensions (H x W x D) |
18.11" (460mm) X 15.94" (405mm) X 22.64" (575mm) |
|
Weight |
66.5 lb. (30.1 kg) |
KRK Systems has been Behind Great Music for almost 35 years. From being a part of countless hit music productions, to spending time with incredible artists over the years that will forever live in our soul, our company has always gone the distance to deliver world-class gear to music creators and audio professionals around the world. Our sincere passion is seeing music and audio creators of all levels and genres use our equipment to realize their dreams.
