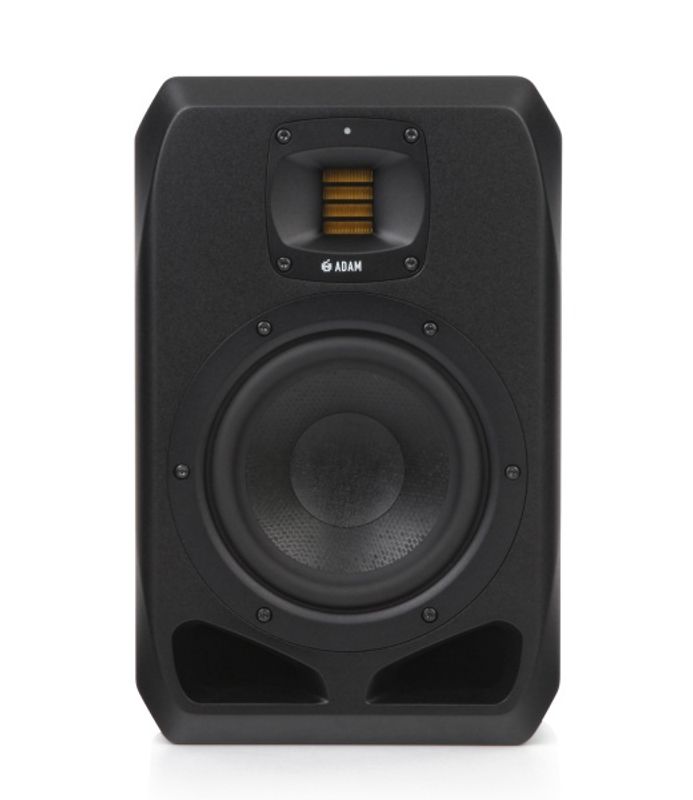

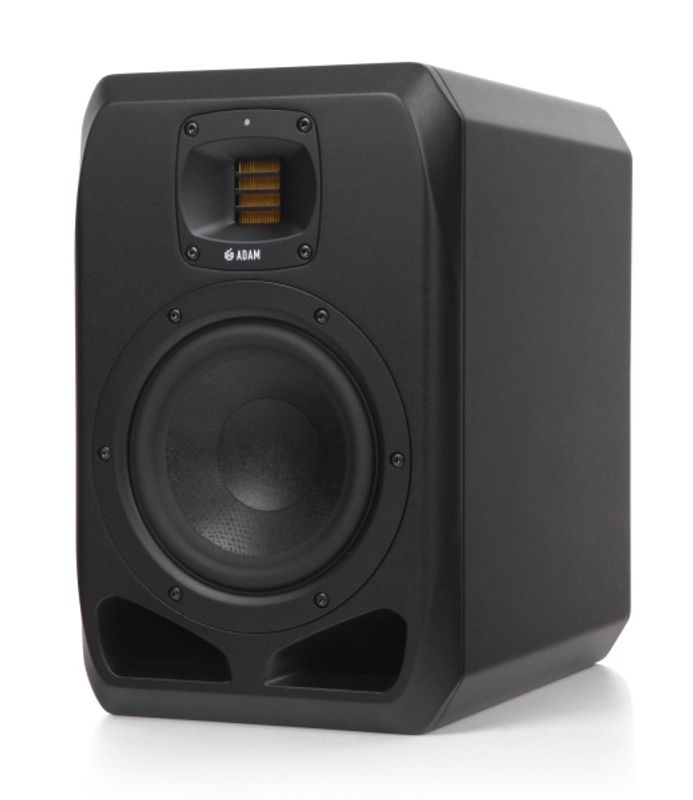

The S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms.
The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, handbuilt as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.
The S2V’s compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.
The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.
With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.
German Handmade Precision S-ART Tweeter with HPS Waveguide
7“ Woofer (Hexacone)
Cumulated Amp. Power RMS: 350 W
Frequency Response: 35 Hz - 50 kHz
Max. SPL Per Pair at 1 m: ≥120 dB
AES3 Digital Inputs And Various Expansion Options
NB! Adam Audio gir 5 års garanti, dersom du registrerer produkter du kjøper av oss på deres nettsider:
https://www.adam-audio.com/en/warranty-terms/
ADAM Audio was founded in March 1999 in Berlin. Since then the company has been developing, manufacturing and distributing loudspeakers in the field of Professional Audio.
The development of the X-ART (eXtended Accelerating Ribbon Technology) tweeter based on the 1960’s invention of the Air Motion Transformer by Oskar Heil was largely responsible for the company’s founding. Producing sound not with a piston-like diaphragm as is done in most of the loudspeakers that are on the market, but using a pleated diaphragm that is capable of moving the air 4 times faster than the folds themselves are moving was the appealing idea behind it all. The achieved results were intriguing and gave ample reason for moving forward.
